REPLACEMENT TABLE TOPS - indoor & outdoor for any foodservice & contract application

THE LAST TABLE TOPS YOU WILL HAVE TO REPLACE

That good? you might ask...
YES, OUR TABLE TOPS ARE THAT GOOD

Our table tops were developed to replace old wood table tops with K-plate systems for the most demanding rental and catering applications... yet they can be used with most existing mono-leg systems on the market to replace any wood table top, in restaurant, cafes, bars.

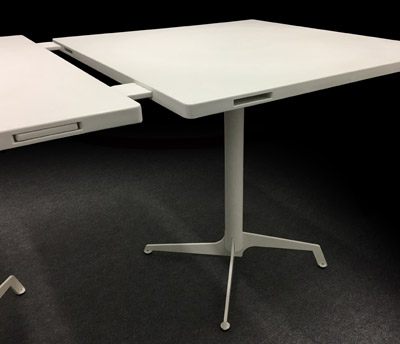

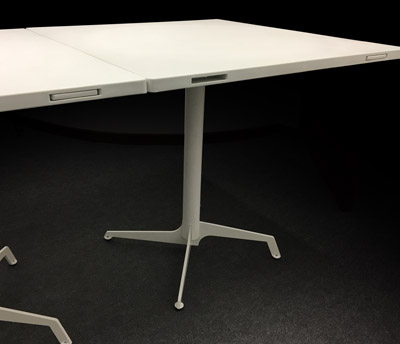

connectivity is amazing with our 30in.x32in. table tops... When regular mono-leg tables are joined together to accommodate large parties, the alignment is very often impossible, table tops have steps and/or slightly different inclinations resulting in visually unpleasant and quite uncomfortable junctions. With our slide in-slide out tongue and groove system, tables can be added in any direction and they remain seamlessly joined. Your customers will love it... You will love it

all weather-UV resistant our table tops can be used INDOOR & OUTDOOR

super strong and highly resistant to scratches the fiber glass filled techno-polymer has a natural scratch resistance predisposition paired with strength, impact resistance and rigidity unparalleled by other materials. Metallic inserts can be inserted into the top to increase performances in the coupling table top-leg system of your choice.



Media available for download:

Table Top Replacements

01 Brochure / General / pdf/ 170KB

Tables K-Plates Instructions

10 Instruction / pdf/ 100kb

Tables Metal Inserts Instructions

10 Instruction / pdf/ 100kb

Material

Our table tops are made of a strong, easy to maintain techno-polymer reinforced with fiber glass. They can be used indoor and outdoor. The technology used is an advanced co-injection system resulting in a multi-density structure with a foamed core and high density skin.

Available in white, light gray, beige, redwood.



dimensions: Ø24 in. nominal [600mm]

actual Ø24 1/4 in. [616 mm]
crown thickness 3/4 in. [20 mm]
inner thickness 1/2 in. [13 mm]
net weight: 7.5 lb. [3.40 kg]



dimensions: Ø28 in. nominal [700mm]

actual Ø28 3/8 in. [720 mm]
crown thickness 3/4 in. [20 mm]
inner thickness 1/2 in. [13 mm]
net weight: 12 lb. [5.45 kg]



dimensions: 30inx32in. nominal [800mm]

actual 30 3/8 x 32 1/2 in. [770mmx825mm]
crown thickneww 1 in. [25 mm]
@ sliders thick. 1 1/2 in. [38 mm]
net weight: 15 lb. [6.80 kg]

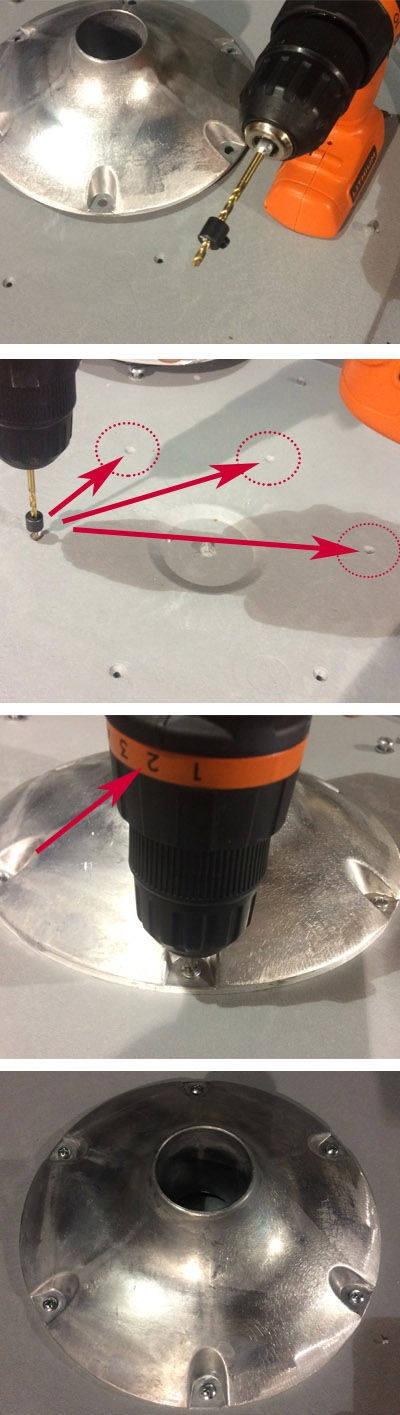

Table top anchorage: K-Plates

In case you are recycling your old table top K-Plates, here's how to.

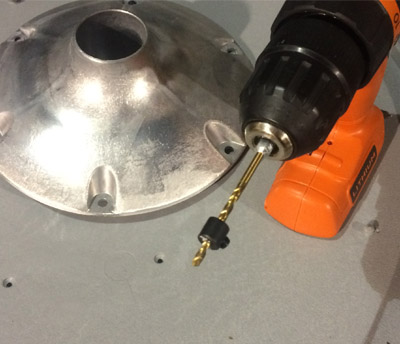

Use a Ø3mm (1/8in.) drill bit with a collar set to make a pre-hole 10mm (3/8in.) deep for the 6 screws holding the k-plate.

The position of the 6 holes for the screws of the k-plate is clearly marked under the table top. Again... the collar on the drill bit should be set at 10mm (3/8in.) from the tip of the bit.

Attach the k-plate driving the 6 wood screws Ø4mmx12mm (#8x1/2in.L) into the table top without over-tightening (set your power- tool on LOW TORQUE if using a power tool). Screw size can be increased all the way up to Ø6 mm (Ø1/4in.).

That’s it...
Enjoy your new table top!!!


We do provide K-Plates with 1 key hole, for Ø 1 3/4 in. columns, pre-assembled to the table top.



Table top anchorage: K-Plates

view more

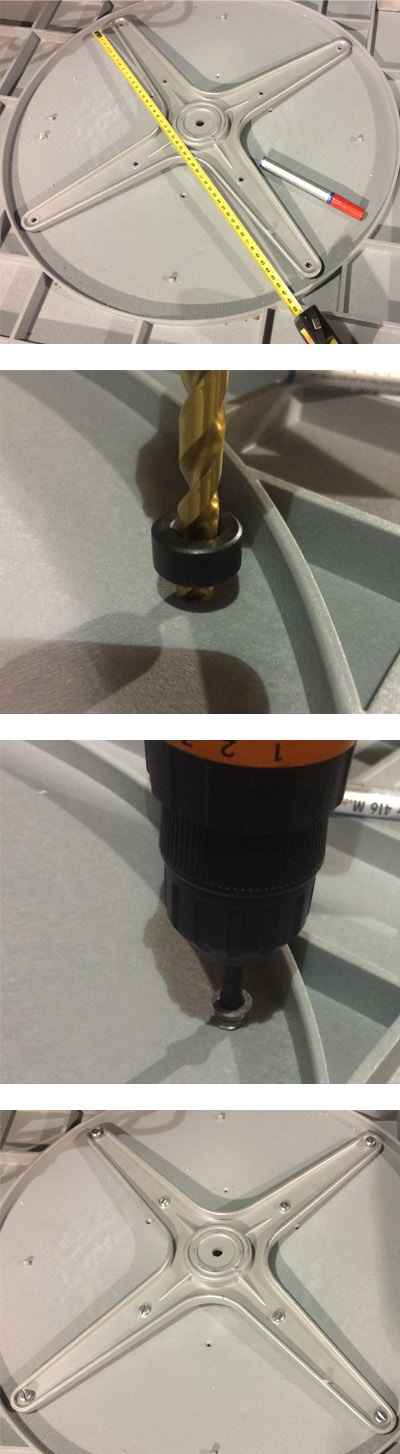

Table top anchorage: metallic inserts for M6 screws

INSERTS for M6 screws to attach most common leg plates/spiders to our table tops.

Referencing your existing plate/spider, locate the position of the screws under the new table top. We can assist and take care of this process if provided with a drawing with the inter axis of the holes.

Use a Ø8mm (5/16in.) drill bit with a collar set to make a 10mm (3/8in.) deep hole that will accommodate the insert.

Using a 6mm Allen key, drive the inserts into the table top holes made previously without over tightening (set your power tool on LOWER TORQUE if using a power tool).

Using M6 screws, attach the leg plate/ spider to the table top to finish the assembly...

Enjoy your new table top!!!



Table top anchorage: metallic inserts for M6 screws

view more

Item# Description Quote
8DSN1W Table top 30in.x32in. WHITE ask quote
8DR28W Table top ROUND Ø28in. WHITE ask quote
8DR28G Table top ROUND Ø28in. LIGHT GRAY ask quote
8DR28B Table top ROUND Ø28in. BEIGE ask quote
8DR28A Table top ROUND Ø28in. ANTHRACITE ask quote
8DR24W Table top ROUND Ø24in. WHITE ask quote
8DR24G Table top ROUND Ø24in. LIGHT GRAY ask quote
8DR24B Table top ROUND Ø24in. BEIGE ask quote
8DR24A Table top ROUND Ø24in. ANTHRACITE ask quote



  accessories:





---

items in this collection:
1 1/2 in. Rigid Chiavari Pad no velcro needed - Engage 2 in. Custom Fit Chiavari Cushion 1 1/2 in. Standard Chiavari Cushion - Economy Pad & Cushion Bag for Storage and Transportation Chiavari shoes: no more sinking Chiavari shoes: secure chairs to a pallet Chair link and spacer: you need space!!! Ispra linking armrest Extra folding chair pads Extra folding chair pads (TB133) Folding Chair Resin Seat Inserts DR chair pallet for FOLDING chairs AND OR CHIAVARI CHAIRS RG chair tray, pallet & dolly for FOLDING chairs DE chair pallet (long) for HIGH BACK FOLDING chairs & Covers Stack Cover for regular Folding Chair HQ Stack Cover for Ispra Folding Chair HQ Stack Cover for regular Folding Chair ECONOMY Chair truck, HEAVY DUTY, 4 wheels Chair hand truck, 2 wheels single axle Chair Cart for HIGH BACK Folding Chairs REPLACEMENT TABLE TOPS - indoor & outdoor for any foodservice & contract application Table top anchorage: K-Plates Table top anchorage: metallic inserts for M6 screws ELLE Replacement Additional Seats Ø18in. Round Slide In Footrest Table cart to store and transport tables

---

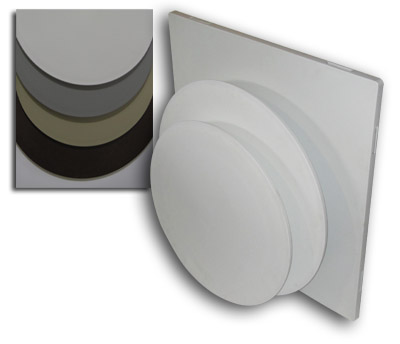

Replacement table tops sizes and colors

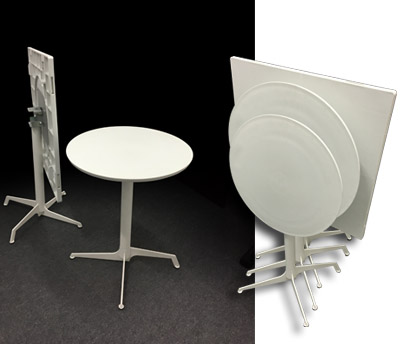

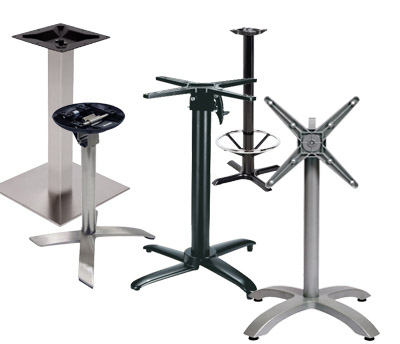

Our table tops can be adapted and used with most leg systems on the market
more leg systems

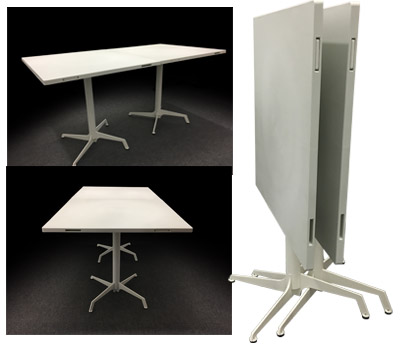

Our table tops 30x32 modular connecting
Our table tops 30x32 modular connecting
Our table tops 30x32 modular connecting

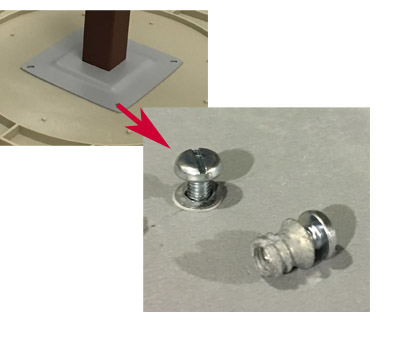

using inserts for anchorage
or using a k-plate to connect to the leg
