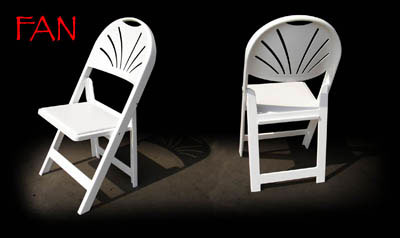

NEW FAN: resin folding and stacking chairs
Drake Corp. 110 Tices Lane, Unit A7, East Brunswick, NJ 08816 USA, tel 732 254 1530, fax 732 254 3509

NEW FAN: resin folding and stacking chairs

COLLECTION NAME

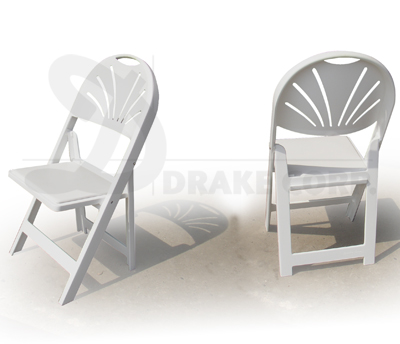

FAN resin folding and stacking chair.
10.5 lbs. including padded seat.
Solid material (no hollow core)
Available in White or Black color
    and Silver color frame with black pad.
Made in the USA

No more hanging on racks as happens with similar chairs!!! Our chairs are folding, stacking (horizontally and vertically), and come equipped with an interlocking feature that makes moving and storing them quite simple. They are strong, durable, weatherproof, UV protected, don't need painting and require very little maintenance.

Fan are well known folding and stacking chairs by Drake. The new Fan chairs by Drake, are now manufactured with the back completely integrated into the chair frame. The decision to move toward this solution, was made to both increase the comfort of the back, and improve the aesthetics of the chair.

In the new chair, the materials of the back and the frame are now consistent in resistance and color. The back is very flexible to meet higher comfort standards and to make the entire chair more impact resistant at the same time. The new backs have been furthermore designed to have a smooth surface that's not textured, which makes it much easier to clean. Texture is known to be used in plastic to hide defects. As we do not need to hide anything... we decided to ease up the life of the people that work with our products lifting the Fan chair to new, higher standards!!!

BUY A SAMPLE ON-LINE  or click on ask quote.

FILES available for download:
Name Description Format Size
Fan Folding Chairs Brochure pdf 400KB
Chair Linking Brochure pdf 400KB
Chair Trucks & Covers Brochure pdf 530KB
Chair Pallets & Dollies Brochure pdf 415KB
Chair Cart For HB Chairs Brochure pdf 291KB


SOLID...As a ROCK

Like all Drake folding chairs, the LOAD rests on the two bars supporting the seat, NOT on the screws as on similar chairs.

Static vertical weight testing FEDERAL SPECIFICATION AA-C-291F



MATERIAL

The material used at Drake is a composite multi-layer techno-polymer which allows the manufacturing of the strongest (tested at 500lb.) and lightest (10lbs, only) special event resin chairs on the market.

FAN chairs are manufactured with a TWO COMPONENT RESIN (CO-INJECTION) system - the highest standard in plastic manufacturing. The result is an outer, smooth all weather resistant aesthetic skin, and an inner expanded closed cell modified resin with high mechanical resistance that behaves like a bone and gives exceptional strength to the chair.

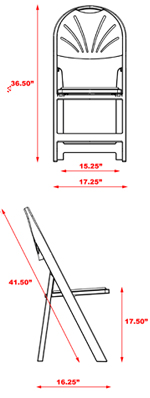

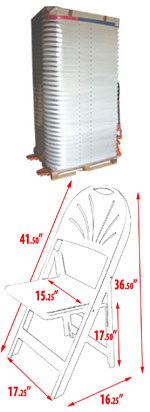

DIMENSIONS

No more hanging on racks as happens with similar chairs!!! Our chairs are folding, stacking (horizontally and vertically), and come equipped with an interlocking feature that makes moving and storing them quite simple. They are strong, durable, weatherproof, UV protected, don't need painting and require very little maintenance. Our chairs can be used with chair washing machines.

Flat Chair dimensions:
17 3/8" x 41.5" x 2 1/3"
Net weight: 10.5 pounds including padded seat.

STACK OF 25 CHAIRS: h=58.5
STACK OF 30 CHAIRS: h=70
STACK OF 50 CHAIRS: h=117



SHIPPING

Fan chairs come in a box of 5 ea.
17 3" x 41.5" x 12.5" at 55 lbs.
Shipping CLASS 85

Samples come in a box of 1ea.:
18"x42"x3" at 11 pounds



MAINTENANCE, REPAIR & WARNINGS

Buying our products means never having to paint a chair again. Because the colors of our products run all the way through them they will never need painting. The only ordinary maintenance required is cleaning.

Inspect and check the integrity of each chair every time before deploying it, making sure all bolts and parts are firmly tightened.

If any parts are missing, damaged, or worn, stop using the chair.

This chair is designed for seating one person at a time and for sitting only.
Do not stand on the chair.
Do not use it as a step ladder.

In the event of damages from extremely rough handling or improper use, do not attempt to glue broken parts back together.

**Call us at 732 254 1530 for spare parts**

We'll be there to assist you in the best way we can.

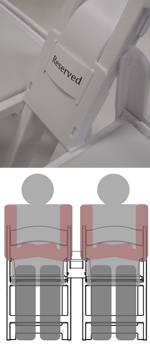

Chair link and spacer: you need space!!!

Sometimes linking chairs together is mandatory. Whenever you link chairs without spacing, you oblige guests to
squeeze in a 17”/18” chair. They need space!!!
With our link & spacer device, you can give 3” more comfort to your
customers and guests so that the feeling is to sit on a wider space.

FEATURES
• Snap on, NO TOOLS required
• Leaves 3” between linked chairs
• Stacks for storage
• Engraved 3 3/4” x 1 1/2” Drake Logo could be replaced by your logo for a one time set up fee

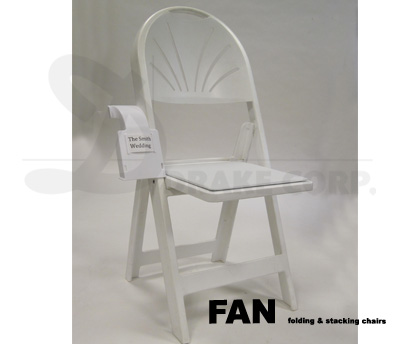

• Placeholder can be used with business card, advertising card, reserved seating card, row and seat number card, event card. Customize the event/seating using Avery® Clean Edge Business cards 2”x3 1/2”




Pallets & stack covers for high back chairs

DE CHAIR PALLET FOR HIGH BACK FOLDING CHAIRS (extra long)
material: thermoformed HDPE 0.220” thick
sheet capacity: 330 lb. distributed load
internal: 18” x 43.5”
external: 18.5” x 44”
straps: 2”
pallet feet: none
casters: none
to be used with CHAIR TRUCKS

ECONOMY STACK COVER FOR HIGH BACK FOLDING CHAIRS  (extra long)
Non-woven polyester material. Breathable fabric. 52” lateral slit with Velcro eases up positioning of the cover on the stack and a Velcro buckle for extra security. Bottom edge is hemmed for durability.
Dim. 18” x 42” x 58” high

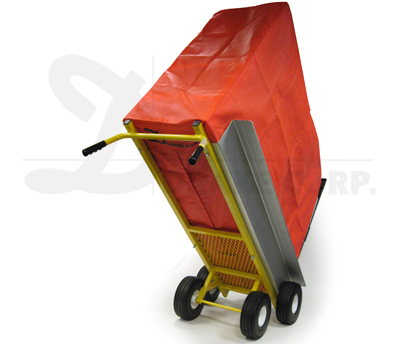

Chair truck

Strong sturdy, a major help in handling chairs. Every task involving moving chairs will be easier.

Please secure the chairs to the chair base or pallets before operating it.

• 4 pneumatic wheels/10” closed cell foam tires, ball bearing hubs
• powder coated steel frame
• expanded metal backguard & 54” aluminum fenders to protect load from rubbing on tires
• 34” long forks, 7/8” diameter, 14 3/4” apart, designed for heavy duty hauling
• MAX LOAD: 750 lbs.
• weight: 97 lbs.

Shipped via truck only, some assembly required.

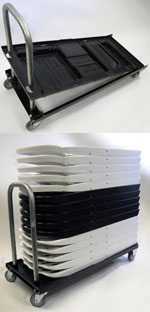

Chair Cart x High Back Folding Chairs

Perfect for transporting chair stacks within Hotels and Banquet Halls where moving through elevators and narrow corridors might be a challenge.
Our famous custom made HDPE thermoformed chair pallet was adapted to be used with a sturdy welded steel frame, equipped with an easy to pull handlebar.

Max Suggested load: 30 chairs
(300lbs distributed load)

2 rigid and 2 swivel 4” Caster
(Polyurethane on Polyolefin)

Some assembly required.



Extra chair pads

The 1/4" flexible padded resin seat is more comfortable than the wood seat. It snaps in and snaps out in a flash without any tools or screws:
- do not warp with humidity
- more comfortable because of the flexibility of the material they are made of.
Available in white or black.



Resin chair pads

A comfortable alternative to the padded seats. Good look, very low maintenance, Drake did it again, coming up with an alternative to PVC upholstered seats.

• no modification to the chair necessary, pop out the old seat and snap in one of these colored seats. Available in white, black, green, red... you name it.
• change the seat to match the event theme
• special contoured shape for superior comfort
• can be left out in any weather condition without becoming soggy like the vinyl covered foam pads





item# description
quote
5FanW-W Fan White folding and stacking chair
5FanB-B Fan Black folding and stacking chair
5FanS-B Fan Silver Color Frame/Black Seat folding and stacking chair
3LSWP Chair Spacer Link White
3LSBP Chair Spacer Link Black
3Base-2200 DE chair pallet for high back folding chairs
3ST25TNT-R Economy Stack Cover for 25 Folding high back Chairs
3TRCKDR Chair Truck
RsiPWit Extra White Seat
RsiPBit Extra Black Seat

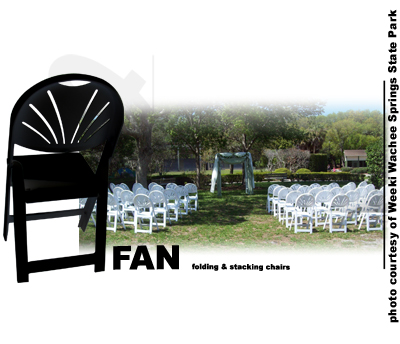

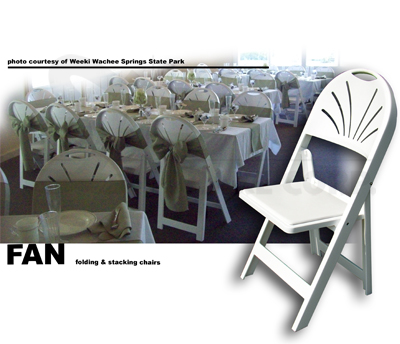

NEW FAN: resin folding chairs outdoors
NEW FAN: resin folding chairs in tent

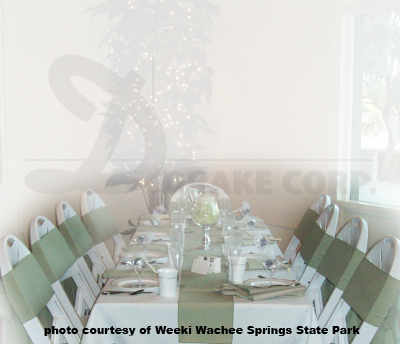

NEW FAN: resin folding chairs / tabletop

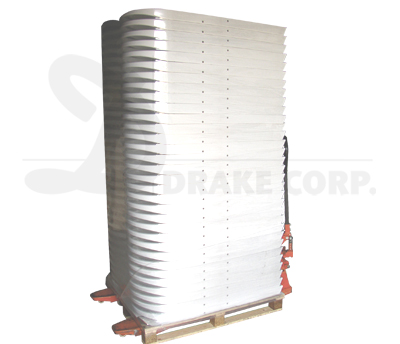

NEW FAN: resin folding chairs / stack
NEW FAN: resin folding chairs / easy handling
NEW FAN: resin folding chairs / MADE IN THE USA

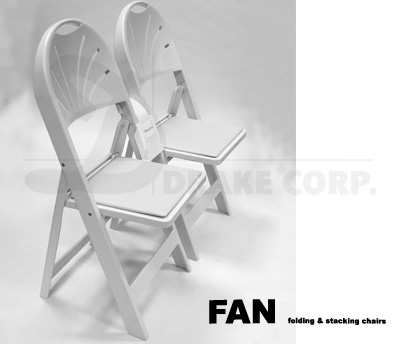

NEW FAN chairs / chair link and spacer
NEW FAN chairs / chair link and spacer
