CHATEAU: folding and stacking chairs

CHATEAU resin folding and stacking chair

Chateau folding and stacking chairs by Drake, with their high decorative back towering the tables and their classical rich lines, will stand out and look fabulous whatever the setting.

Whether used with additional decorations or simply bare, the Chateau will bring high class event sophistication with the ease of handling of a folding chair.

The technology for the “Chateau” is the same as our traditional “Structure” folding chair, Co-injection technology with an aesthetic outer skin as well as a solid foam core.


Features:

• Super lightweight.

• Strong and secure.

• Patented stacking and interlocking system.

• Ultra bright white color. (Other colors include black, redwood, silver and gold.)


These chairs will better dominate the table set up due to the 41.5” long design. Chateau chairs are folding, stacking (horizontally and vertically), and come equipped with an interlocking feature that makes moving and storing them quite simple. They are strong, durable, weatherproof, UV protected, don't need painting and require very little maintenance.

MADE IN THE USA

click on ask quote below to inquire



Media available for download:

Chateau High Back Folding Chairs

02 Brochure / pdf/ 230B

Chair Linking

02 Brochure / pdf/ 400KB

Chair Pallets & Dollies

01 Brochure / pdf/ 415KB

Chair Trucks & Covers

01 Brochure / pdf/ 530KB

Chair Cart For HBChairs (high back)

01 Brochure / pdf/ 291KB

SOLID...As a ROCK

Like all Drake folding chairs, the LOAD rests on the two bars supporting the seat, NOT on the screws as on similar chairs.

Static vertical weight testing FEDERAL SPECIFICATION AA-C-291F



MATERIAL

The material used at Drake is a composite multi-layer techno-polymer which allows the manufacturing of the strongest (tested at 500lb.) and lightest (10lbs, only) special event resin chairs on the market.

CHATEAU chairs are manufactured with a TWO COMPONENT RESIN (CO-INJECTION) system - the highest standard in plastic manufacturing. The result is an outer, smooth all weather resistant aesthetic skin, and an inner expanded closed cell modified resin with high mechanical resistance that behaves like a bone and gives exceptional strength to the chair.

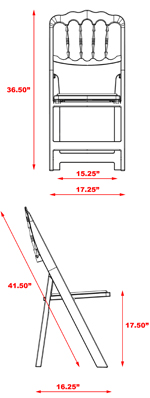

DIMENSIONS

Our chairs are folding, stacking (horizontally and vertically), and come equipped with an interlocking feature that makes moving and storing them quite simple.

Flat Chair dimensions:
17 3/8" x 41.5" x 2 1/3"
Net weight: 10.5 pounds including padded seat.

STACK OF 25 CHAIRS: h=58.5”
STACK OF 30 CHAIRS: h=70”
STACK OF 50 CHAIRS: h=117”



FOLDING CHAIR CLEANING

We suggest water and mild soap to clean up dust and common everyday dirt.
When “hard to clean” marks are found on the WHITE chairs (only on white chairs!), SOFT SCRUB or an equivalent product will work just fine.
Steam cleaning could be performed from time to time and only when really needed. The operating 212°F-230°F temperature range is considered safe.
And....yes, Drake resin folding chairs can be washed in automatic chair washing machines.

ATTENTION before using any kind of cleaner, make sure that it is is not going to affect the materials of the chair, particularly the vinyl of the seat pad . Try the cleaner on a small area and make sure no visible damages appear for at least 5-7 days before using the cleaner consistently.
In any case the vinyl (PVC) of the seat should not be treated with acids, solvents, sodium hydroxide (caustic soda NaOH), sodium hypochlorite NaClO (liquid bleach).



MAINTENANCE, REPAIR & WARNINGS

Buying our products means never having to paint a chair again. Because the colors of our products run all the way through them they will never need painting. The only ordinary maintenance required is cleaning.

Inspect and check the integrity of each chair every time before deploying it, making sure all bolts and parts are firmly tightened.

If any parts are missing, damaged, or worn, stop using the chair.

This chair is designed for seating one person at a time and for sitting only.
Do not stand on the chair.
Do not use it as a step ladder.

In the event of damages from extremely rough handling or improper use, do not attempt to glue broken parts back together.

**Call us for spare parts**

We'll be there to assist you in the best way we can.



SHIPPING

Chateau chairs come in a box of 5 ea.
17 3" x 41.5" x 12.5" at 55 lbs.
Shipping CLASS 85

Samples come in a box of 1ea.:
18"x42"x3" at 11 pounds

*********
CONTINENTAL USA ONLY
STANDARD 100 CHAIR SHIPPING MODULE (no accessories) is one pallet:
Dim.: 55” x 42” x 83” [inches]
Weight: 1100 lb.
ESTIMATED CLASS 100



Extra folding chair pads

The 1/4" flexible padded resin seat is more comfortable than the wood seat. It snaps in and snaps out in a flash without any tools or screws:
- do not warp with humidity
- more comfortable because of the flexibility of the material they are made of.
Available in white or black (as a standard, custom colors available upon request, subject to min. order)



Extra folding chair pads

view more

Chair link and spacer: you need space!!!

Sometimes linking chairs together is mandatory. Whenever you link chairs without spacing, you oblige guests to
squeeze in a 17”/18” chair. They need space!!!

With our link & spacer device, you can give 3” more comfort to your
customers and guests so that the feeling is to sit on a wider space.

FEATURES


• Snap on, NO TOOLS required

• Leaves 3” between linked chairs
• Stacks for storage

• Engraved 3 3/4” x 1 1/2” Drake Logo could be replaced by your logo for a one time set up fee

• Placeholder can be used with business card, advertising card, reserved seating card, row and seat number card, event card. Customize the event/seating using Avery® Clean Edge Business cards 2”x3 1/2”



Chair link and spacer: you need space!!!

view more

DE chair pallet (long) for HIGH BACK FOLDING chairs & Covers

DE CHAIR PALLET FOR HIGH BACK FOLDING CHAIRS (extra long)
material: thermoformed HDPE 0.220” thick
sheet capacity: 330 lb. distributed load
internal: 18” x 43.5”
external: 18.5” x 44”
straps: 2”
pallet feet: none
casters: none
to be used with CHAIR TRUCKS


ECONOMY STACK COVER FOR HIGH BACK FOLDING CHAIRS
Non-woven polyester material. Breathable fabric.
52” lateral slit with Velcro eases up positioning of the cover on the stack and a Velcro buckle for extra security. Bottom edge is hemmed for durability.
Dim. 18” x 42” x 58” high

HQ STACK COVER FOR HIGH BACK FOLDING CHAIRS
Nylon, with inner PVC coat. Heavy duty water resistant chair stack cover, for transportation and storage. Taylored for a 25 high back folding chair stack. Lateral slit with Velcro eases up positioning of the cover on the stack.
Dim. 18” x 42” x 58” high



DE chair pallet (long) for HIGH BACK FOLDING chairs & Covers

view more

Chair truck, HEAVY DUTY, 4 wheels

Strong sturdy, a major help in handling chairs. Every task involving moving chairs will be easier.

Please secure the chairs to the chair base or pallets before operating it.

• 4 pneumatic wheels/10” closed cell foam tires, ball bearing hubs
• powder coated steel frame
• expanded metal backguard & 54” aluminum fenders to protect load from rubbing on tires
• 34” long forks, 7/8” diameter, 14 3/4” apart, designed for heavy duty hauling
• MAX LOAD: 750 lbs.
• weight: 97 lbs.

Shipped via truck only, some assembly required.



Chair truck, HEAVY DUTY, 4 wheels

view more

Chair Cart for HIGH BACK Folding Chairs

Perfect for transporting chair stacks within Hotels and Banquet Halls where moving through elevators and narrow corridors might be a challenge.
Our famous custom made HDPE thermoformed chair pallet was adapted to be used with a sturdy welded steel frame, equipped with an easy to pull handlebar.

Max Suggested load: 30 chairs
(300lbs distributed load)

2 rigid and 2 swivel 4” Caster
(Polyurethane on Polyolefin)

Some assembly required.



Chair Cart for HIGH BACK Folding Chairs

view more

Item# Description Quote
5HBChtW-W Chateau White • folding and stacking chair ask quote
5HBChtB-B Chateau Black • folding and stacking chair ask quote
5HBChtRW-B Chateau RedWood • folding and stacking chair ask quote
5HBChtG-B Chateau Gold with Black Seat • folding and stacking chair ask quote
5HBChtS-B Chateau Silver with Black Seat • folding and stacking chair ask quote



  accessories:
RSIPWIT Padded seats - white ask quote
RSIPBIT Padded seats - black ask quote
3LS-W-P Linking Spacer White ask quote
3LS-B-P Linking Spacer Black ask quote
3BASE-2200 Chair pallet - 25 chairs (long x High Back) ask quote
3ST25TNT-R Economy stack cover (red/long x High Back) ask quote
3ST25NYL-GV HQ Stack cover (green/long x High Back) ask quote
3TRCKDR Chair truck (4 wheels/yellow) ask quote
3cart2200 DE Pallet / CHAIR cart ask quote





---

items in this collection:
CHIP resin folding and stacking chairs (AKA White Wedding Folding Chairs) STRUCTURE resin folding and stacking chairs ISPRA resin folding & stacking chairs, by Centro Erre CHIP-R Resin folding and stacking chairs / CHAIR TO CHAIR  program CHATEAU: folding and stacking chairs LOUIS: folding and stacking chairs FAN: resin folding and stacking chairs

---

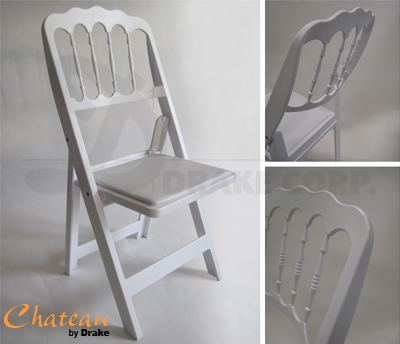

Chateau folding and stacking chair / White

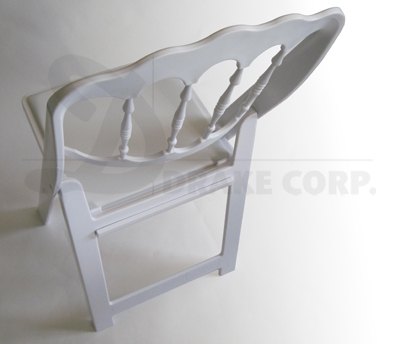

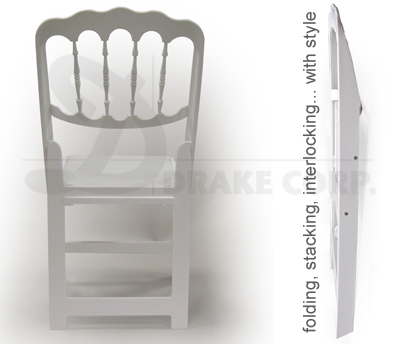

Chateau white / back detail and folding flat
Chateau white / top back detail

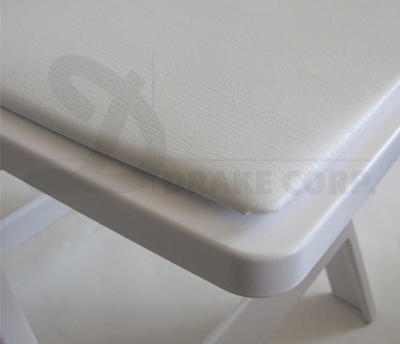

Chateau white / seat detail

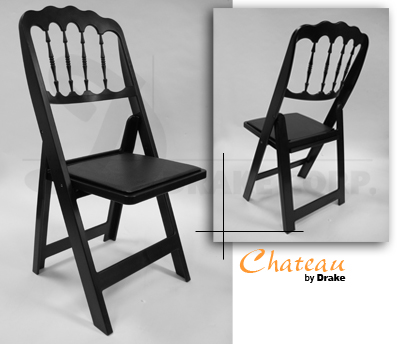

Chateau high back folding chair / black color

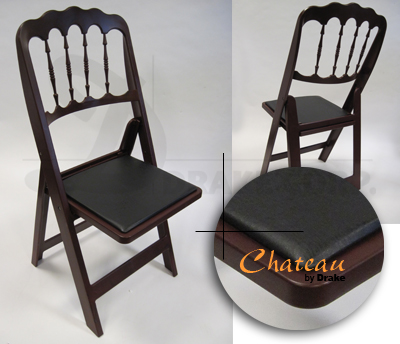

Chateau high back folding chair / redwood color

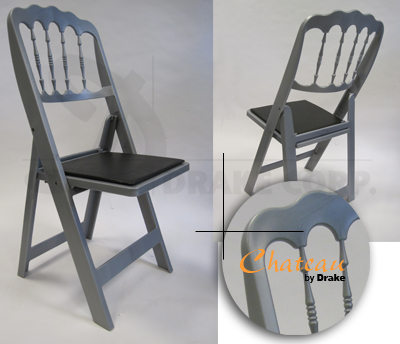

Chateau high back folding chair / silver color

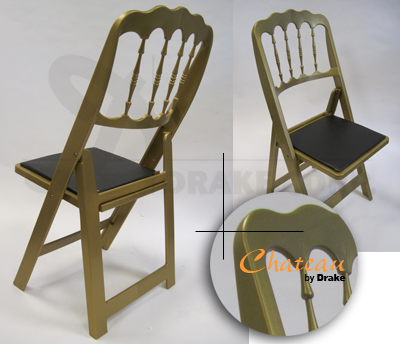

Chateau high back folding chair / gold color

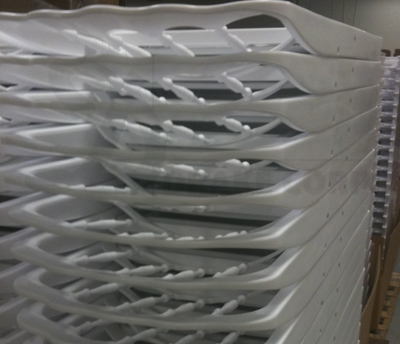

Chateau high back folding chair / stacks

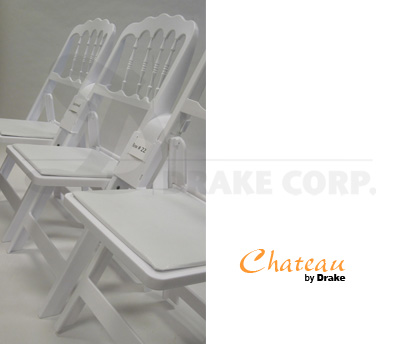

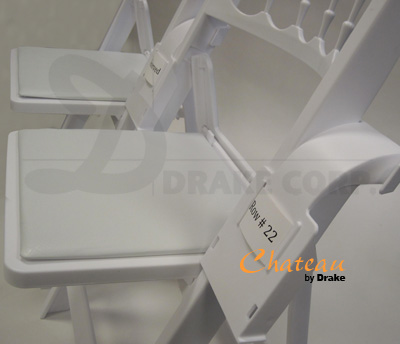

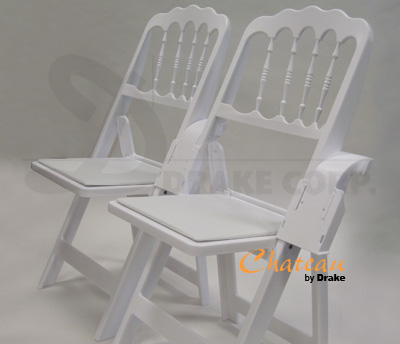

Chateau high back folding chairs / chair link and spacer
Chateau high back folding chairs / chair link and spacer
Chateau high back folding chairs / chair link and spacer

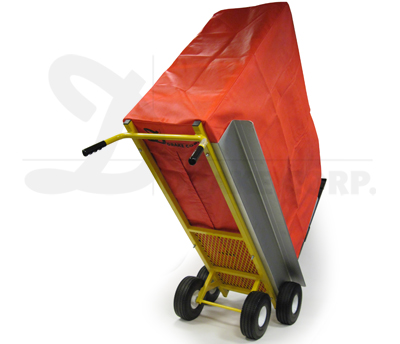

Chateau high back folding chair / handling
Chateau are proudly made in the USA
